Raspberry Pi x Splashkit Integration

Added GPIO support to SplashKit Core using libgpiod_if2 and contributed to strategic development planning

IoT/Embedded3 technologiesJan 2026
Category
IoT/Embedded
Tech Stack
3 items
Released
Jan 2026

Visual Highlights

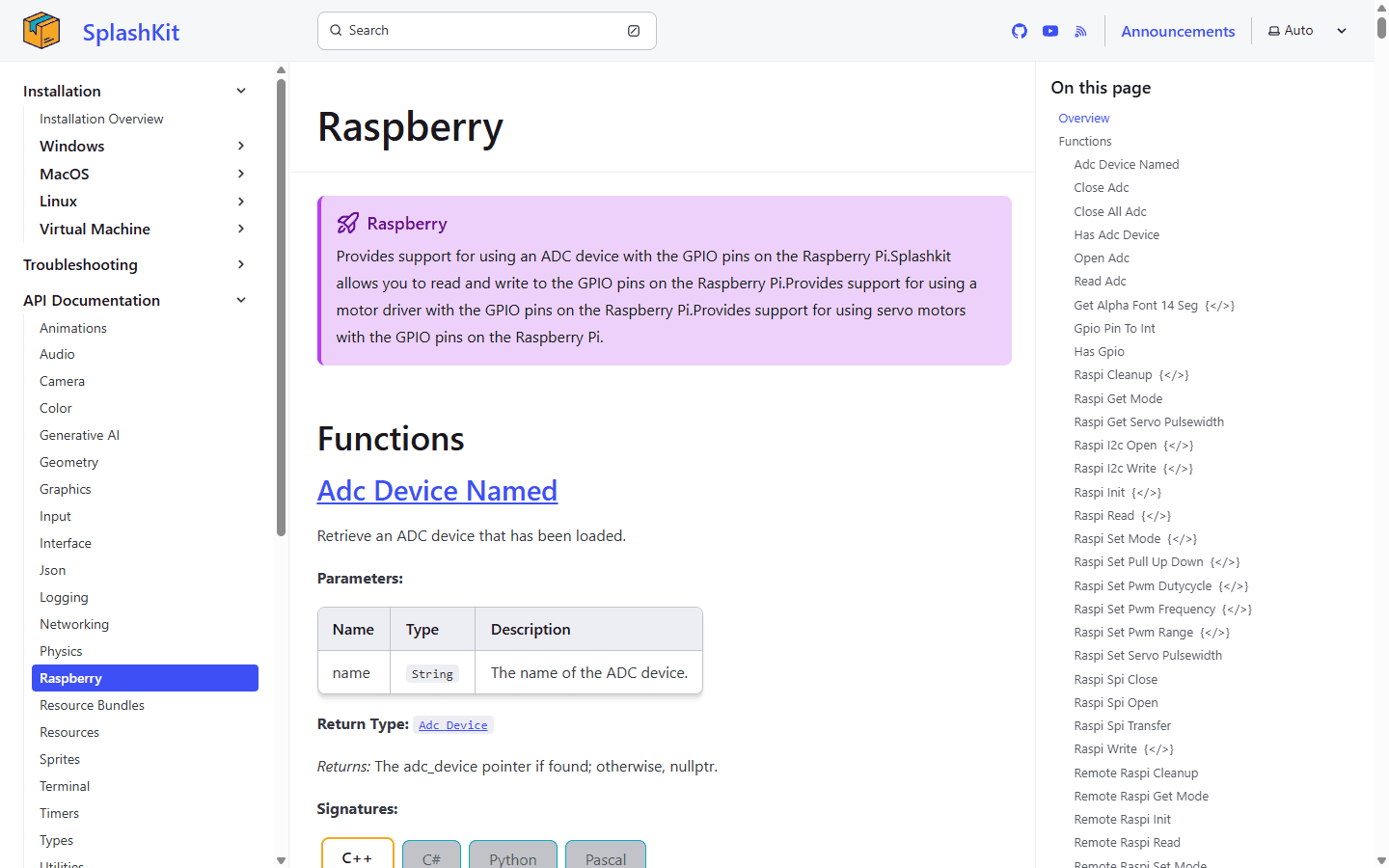

SplashKit Raspberry API documentation screenshot
Raspberry-focused API surfaces used to shape the integration pipeline.

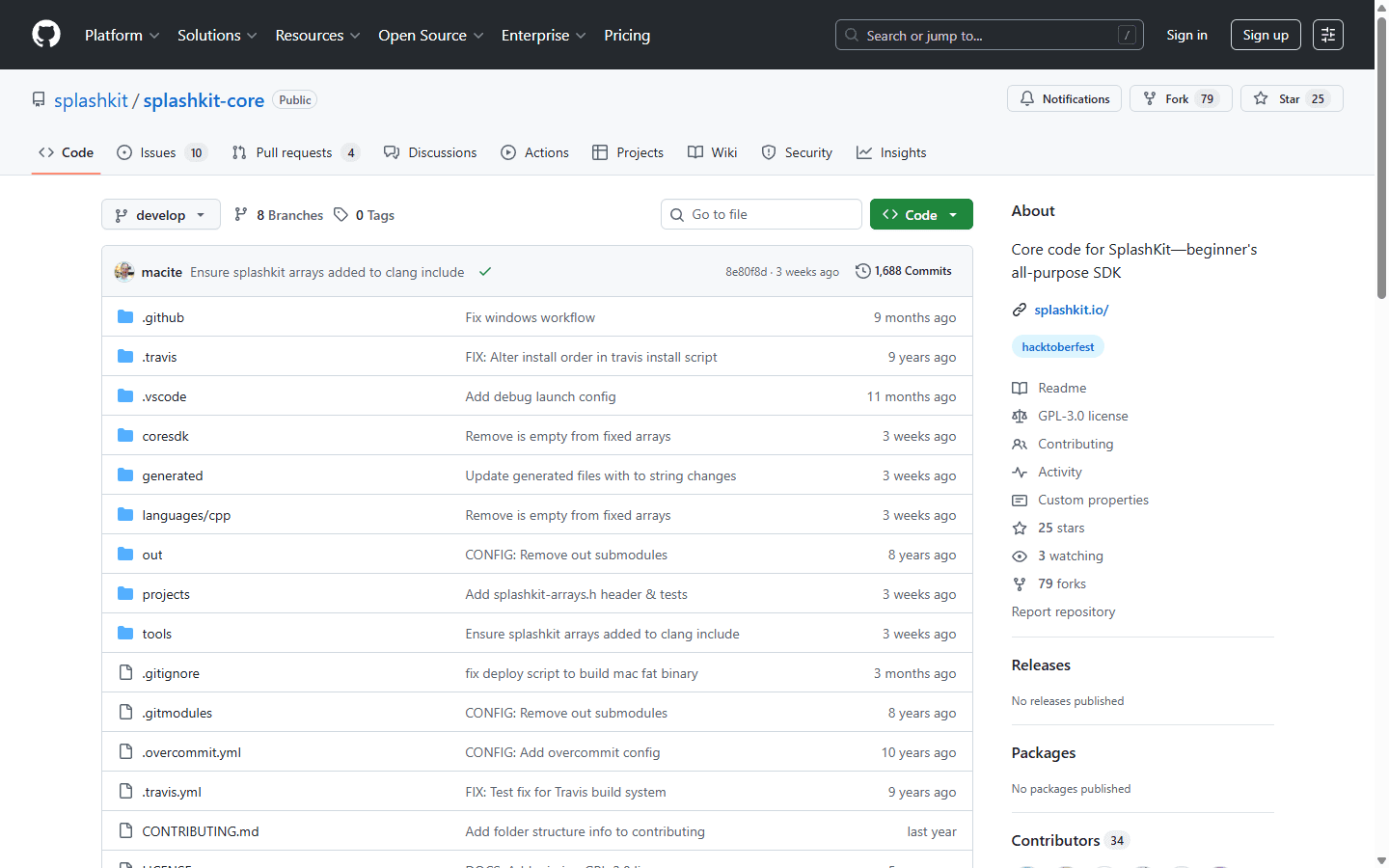

SplashKit core GitHub repository screenshot
Core repository workflows and contribution surface for integration work.

title: "GPIO Support Integration in SplashKit Core" description: "Added GPIO support to SplashKit Core using libgpiod_if2 and contributed to strategic development planning"

🛠 GPIO Support Integration — SplashKit Core

I extended the SplashKit Core SDK by adding GPIO (General Purpose Input/Output) support for Linux platforms using the libgpiod_if2 library, enabling direct hardware pin interaction from SplashKit programs.

📦 Background

SplashKit Core is the foundational library of the SplashKit SDK, offering a wide range of cross-platform APIs for graphics, audio, input, networking, and more to make game and application development accessible for beginners and educators.

GPIO support allows programs to interact with physical hardware pins on Linux boards (e.g., Raspberry Pi) — reading inputs like button presses and driving outputs like LEDs — directly through SplashKit’s API.

⚙️ Technical Implementation

  • libgpiod_if2 Integration:

    • I integrated the Linux GPIO character device interface via the libgpiod_if2 library, a modern userspace C library that replaces the legacy sysfs GPIO interface and provides a robust API for GPIO operations.
    • This involved linking libgpiod to SplashKit Core and wrapping its functionality behind beginner-friendly SDK calls.

  • API Extensions in SplashKit Core:

    • Designed and implemented abstractions such as gpio_open(), gpio_set_direction(), gpio_write(), and gpio_read() that map internally to libgpiod_if2 calls.
    • Ensured that these functions integrate cleanly into the existing SplashKit lifecycle and error-handling patterns.

  • Cross-Platform Compatibility:

    • Wrapped GPIO features with compile-time guards so that builds on unsupported platforms (e.g., Windows/macOS) remain unaffected and compile successfully without GPIO support.

  • Resource Management:

    • Implemented safe GPIO resource allocation by managing device handles and release logic to prevent leaks or conflicts with other userspace processes.

  • Testing & Examples:

    • Created example programs and tests that demonstrate typical GPIO use cases (e.g., reading a button, toggling an LED) within SplashKit applications.

📈 Strategic Contributions

  • Long-Term Development Planning:

    • Proposed a roadmap for expanding hardware interfacing features in SplashKit, such as additional peripheral protocols (I²C, SPI) and platform abstraction layers.

  • Team Coordination & Documentation:

    • Collaborated with the core maintainers to refine API designs, scope feature requirements, and document patterns for future contributors.

🧠 Impact

  • Expanded SplashKit’s capability from purely graphical and multimedia functionality to include physical computing scenarios, broadening its educational applicability.
  • Enabled users to write hardware-interactive programs in the same beginner-friendly SDK they use for game and application development.
